Automation for Cartridges machine production
The machine is destined for the American market for a manufacturer of cartridges.
We used American components specially Allen-Bradley Rockwell to meet customer needs.
The PLC is the CompactLogix L30E series that communicates via Ethernet-IP with an inverter Powerflex 755, a Kinetix 300 servo, the Pilz safety module and two Point-IO modules.

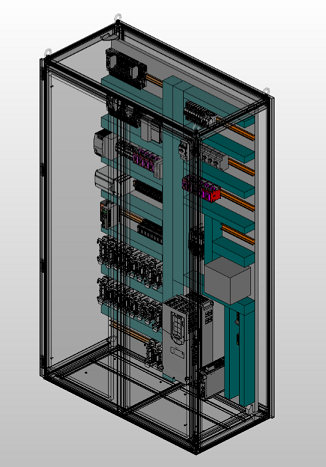

Above is the 3D prototype developed with EPLAN Pro Panel.
